Overview

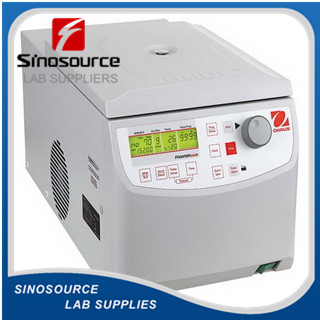

Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
High sample throughput,multi-safety control, personal program function
Specifications
|
Speed Range |
200 rpm – 15,200 rpm |
|
Maximum Relative Centrifuge Force (x g) |
21,953 g |
|
Maximum Capacity(Rotor) |
44 x 1.5 / 2.0ml; 12 x 5 ml |
|
Refrigeration Range {metric} |
-4 °F – 104 °F (-20 °C – 40 °C) |
|
Program memories |
99 |
|
Rotor In Package |
Not applicable |
|
Acceleration Gear |
10 |
|
Deceleration Gear |
10 |
|
Dimensions (HxLxW) |
11.5 in x 22.1 in x 11.3 in (292 mm x 561 mm x 287 mm) |
|
Display |
LCD with backlight |
|
Lid lock |
Motor driven |
|
Net Weight |
77 lb (35 kg) |
|
Noise Level |
≤57±2 dB(A) |
|
Power |
AC Power (Included) |
|
Power Consumption |
500 W |
|
Pre-cool time |
From room temperature to 4℃ ＜ 10min |
|
Rotor Compatibility |
Angle 24 x 1.5 ml / 2.0 ml; Angle 24 x 1.5 ml / 2.0 ml Sealable; Angle 12 x 5 ml Sealable; Angle 44 x 1.5 ml / 2.0 ml; Angle 4 x 8 place PCR Strips; Angle 30 x 1.5 ml / 2.0 ml Sealable |
|
Running Time |
10 sec to 99 h 59 min 59 sec; Continous |
|
Safety Certification |
CE; FCC |
|
Working Environment |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
