Overview

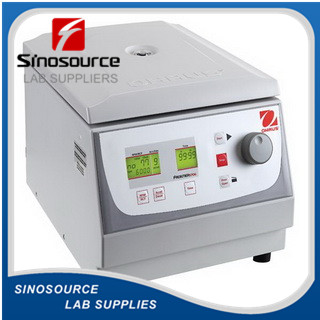

Frontier 5706 is a small benchtop multi-function centrifuge ideal for a multitude of spin-down applications. Characterized by reliability, various safety features, the ability to accommodate test tubes of various sizes and intuitive operation, Frontier? 5706 was built to meet the basic need for liquid separation in the life sciences.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
AC Power (Included)
Construction
Brushless quiet motor, small footprint
Design Features
Easy installation design
Specifications
|
Speed Range |
200 rpm – 6,000 rpm |
|
Maximum Relative Centrifuge Force (x g) |
4,427 g |
|
Maximum Capacity(Rotor) |
6 x 50 ml |
|
Program memories |
99 |
|
Rotor In Package |
Not applicable |
|
Acceleration Gear |
10 |
|
Deceleration Gear |
10 |
|
Dimensions (HxLxW) |
10.5 in x 15.4 in x 11.5 in (266 mm x 392 mm x 291 mm) |
|
Display |
LCD with backlight |
|
Lid lock |
Motor driven |
|
Net Weight |
23 lb (10.5 kg) |
|
Noise Level |
≤60±2 dB(A) |
|
Power |
AC Power (Included) |
|
Power Consumption |
100 W |
|
Pre-cool time |
Not applicable |
|
Rotor Compatibility |
Angle 12 x 15ml; Angle 6 x 50 ml; Swing Out Rotor 6 x 5 ml |
|
Running Time |
10 sec to 99 h 59 min 59 sec; Continous |
|
Safety Certification |
CE; FCC |
|
Working Environment |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
