Overview

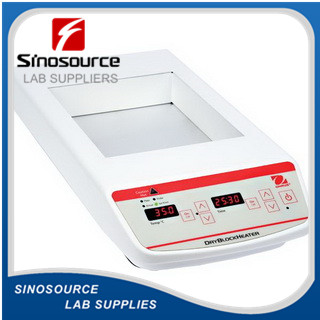

Multi-purpose Dry Block Heaters are ideal for applications that require temperature stability. The close tube-to-block contact enables maximum heat retention, resulting in efficient heating. High-wattage, constant temp. analog models are an economical option, while digital models offer exceptional temp. uniformity & stability for applications that require repeatable results. Units hold optional interchangeable modular blocks with over 40 options.
Applications
Incubation & Activation of Cultures, Enzyme Reactions, Immunoassays, Melting/Boiling Points, Isothermal Incubations, Nucleic Acid Denaturation
Display
LED display (digital models) and dual-adjustment knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included), analog models require an external thermometer or temperature device for temperature setpoint
Communication
N/A
Construction
Painted steel housing, support rod holder with locking knob
Design Features
Touchpad control and audible alarm (digital models)
Specifications
|
Control |
Digital |
|
Temperature Range |
Ambient + 5°C – 120°C |
|
Stability |
± 0.2°C |
|
Uniformity |
± 0.2°C at 37°C |
|
Heat Up Time |
60 min |
|
Calibration |
Temperature calibration |
|
Dimensions (HxLxW) |
3.5 in x 16.9 in x 8 in (8.9 cm x 42.9 cm x 20.3 cm) |
|
Net Weight |
8.4 lb (3.8 kg) |
|
Number of Blocks |
4 |
|
Overshoot Protection |
10°C above set point |
|
Power |
230V, 1.35A, 50/60Hz |
|
Power Consumption |
310 W |
|
Safety Certification |
CE; TUV |
|
Working Environment |
64°F – 91°F, 20% – 80%RH, non-condensing (18°C – 33°C, 20% – 80%RH, non-condensing) |
