Overview

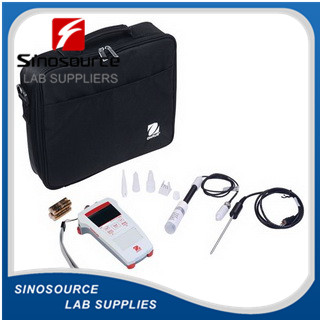

After more than a century of perfecting the art of measurement through our durable weighing products, OHAUS precision is now available in the form of a portable dissolved oxygen (DO) meter. This portable meter offers convenience, reliability and durability in one compact design.
Applications
Dissolved oxygen (DO) measurement
Display
Liquid crystal display (LCD)
Operation
4 AAA batteries (included)
Communication
N/A
Construction
ABS housing, wrist strap
Design Features
30 measurement memory
Specifications
|
Measurement Range |
0.00 – 19.99; 20.0 – 45.0 mg/L; 200 – 400%; 0 – 50 °C |
|
Accuracy |
± 0.3 mg/L; ± 1%; ±0.3 °C |
|
Measurement Resolution |
0.1 mg/L; 1 mg/L; 0.1%; 1%; 0.1 °C; 0.1 ppm; 1 ppm |
|
Display |
LCD |
|
Electrode |
STDO11 (Included); STTEMP30 (Included) |
|
Accuracy DO |
1 % |
|
Accuracy ± (Temperature) |
0.3 °C |
|
Battery Life |
250 Hours with Disposable Batteries |
|
Calibration |
2 Point |
|
Dimensions (HxLxW) |
1.38 in x 6.69 in x 3.54 in (35 mm x 170 mm x 90 mm) |
|
In-use cover |
No |
|
Measurement Range DO |
0 % – 200 % ; 200 % – 400 % ; 0 ppm – 20 ppm ; 20 ppm – 45 ppm |
|
Measurement Range (Temperature) |
0 °C – 50 °C |
|
Net Weight |
0.16 kg |
|
Parameter |
Dissolved Oxygen |
|
Power |
4 AAA (LR03) Batteries (Included) |
|
Resolution (DO) |
0.01; 0.1 |
|
Resolution Range (DO) |
0.01 – 0.1 |
|
Temperature Compensation |
Automatic |
|
Temperature resolution |
0.1 °C |
|
Temperature Sensor |
30 KΩ NTC |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
