Overview

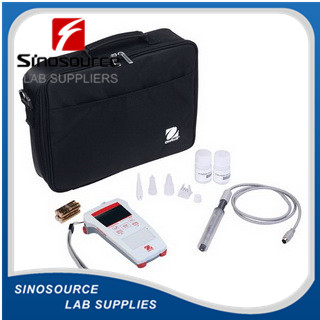

After more than a century of perfecting the art of measurement through our durable weighing products, OHAUS precision is now available in a the form of a portable conductivity meter that can also test for TDS. This portable meter offers convenience, reliability and durability in one compact design.
Applications
Conductivity, total dissolved solids (TDS) measurement
Display
Liquid crystal display (LCD)
Operation
4 AAA batteries (included)
Communication
N/A
Construction
ABS housing, wrist strap
Design Features
Automatic temperature compensation, adjustable temperature coefficient
Specifications
|
Measurement Range |
00.0 μS/cm – 199.9 mS/cm; 0.1 mg/L – 199.9 g/L (TDS); 0 – 100 °C |
|
Measurement Resolution |
0.01 μS/cm; 0.1 mg/L; 0.1 °C |
|
Display |
LCD |
|
Electrode |
STCON3 (Included) |
|
Accuracy ± (Temperature) |
0.3 °C |
|
Battery Life |
250 Hours with Disposable Batteries |
|
Calibration |
1 Point |
|
Conductivity accuracy |
0.5 % |
|
Conductivity measuring range |
0.01 μS/cm-199.9 mS/cm |
|
Dimensions (HxLxW) |
1.38 in x 6.69 in x 3.54 in (33 mm x 170 mm x 90 mm) |
|
In-use cover |
No |
|
Measurement Range (Temperature) |
0 °C – 100 °C |
|
Net Weight |
0.16 kg |
|
Parameter |
Conductivity / TDS |
|
Power |
4 AAA (LR03) Batteries (Included) |
|
Resolution Cond. (Variable) |
0.01 – 1 |
|
Temperature Compensation |
Automatic |
|
Temperature resolution |
0.1 °C |
|
Temperature Sensor |
30 KΩ NTC |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
