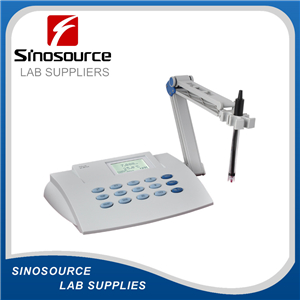

PH Meter LCD display, English operation system for easy use. Model Number: PHSJ-3F

Specifications

LCD display, English operation system for easy use.


1.All-round GLP operation design and self-inspection function

2.Automatic/manual temperature compensation in wide range, self-calibration, self-calculation of electrode percentage of theoretical slope

3.Test results can be stored, deleted, viewed and printed. The amount of data can reach the maximum of 200 sets.

4.Five types of pH buffer solution can be chosen to conduct automatic calibration (one point or two points)

5.It has RS-232 interface, and it can be connected to TP-16 printer. Also, the interface can be used to connect data collecting software and computer.

6.It can be used to measure pH value of ultrapure water, pure water and boiling water by adjusting equipotential point and choosing specific electrode.

7.It is equipped with E-201-C combined electrode and T-818-B-6 temperature electrode.




1.Measuring range:

pH(-2.0020.00)pH

mV(-19991999)mV

Temperature:(-5.0135.0)

2.Resolution:

pH0.01pH

mV1mV

Temperature0.1

3.Accuracy:

pH:±0.01pH±1 bit

mV:±0.1%(FS

Temperature:±0.3℃±1 bit

4.Input impedance>=1×1012Ω

5.Stability:(±0.01pH±1bit/3h

6.Temperature compensation range: Automatic/Manual(-5.0135.0)

7.Power supply: DC power (9V DC500mAinside positive and outside negative)

8.Dimension(mm)280×210×90

9.Net Weight: 1 kg

10.Case outside serial No: WXS-A010-3

Package Size:340X270X280mm

Gross Weight: 2.5kg
