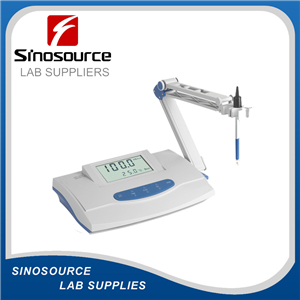

Conductivity Meters Model Number: DDS-307

Specifications



1.3 1/2 LED digital display

2.It has the function of manual temperature compensation.

3.It shows 010mV DC output signal.

4.If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.

5.It is equipped with DJS-1C conductancesensor ( platinum black).



       1.Measuring range:

Conductivity: 0.00μS/cm100mS/cm

2.Accuracy:

Conductivity: ±0.5%FS

3.Stability:(±0.33%FS±1 digital/3h

4.Temperature compensation range: Manual(15.035.0)°C

5.Temperature compensation coefficient: 2%

6.Power supply: AC(220±22)V(50±l)Hz

7.Dimensionmm):290×210×95

8.Net Weight: 1.5kg

9.Case outside serial No: WXS-A000-1

Package Size: 610X290X640mm

Gross Weight: 2.5kg

Conductance Constant and corresponding Conductivity measuring range:

Electrode  constant

(K) (cm-1)

0.01

0.1

1

10

Measuring range

(μS/cm)

0.02.0

0.220.0

21×104

1×1041×105
