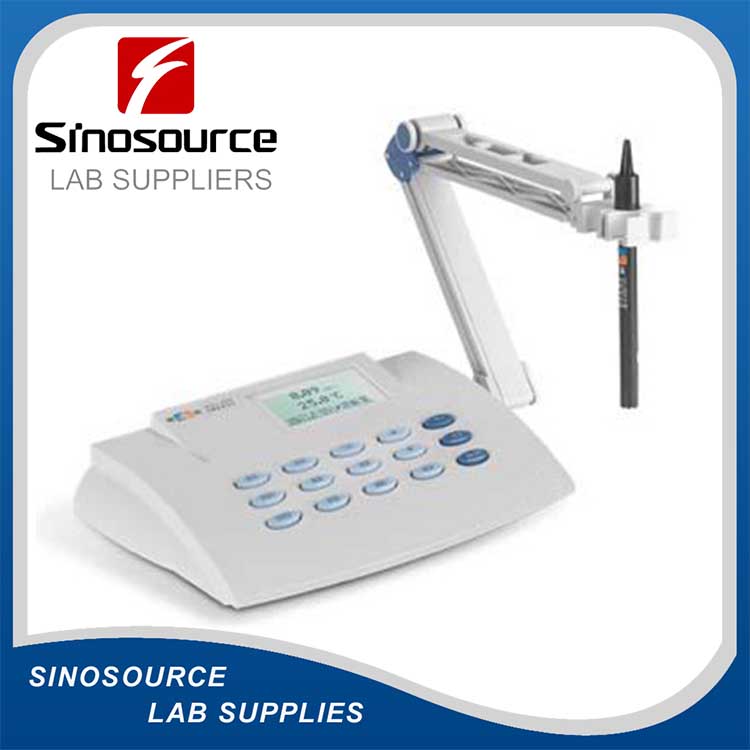

Dissolved Oxygen Meters LCD display and English operation interface. Model Number: JPSJ-605

Specifications

LCD display and English operation interface.

Dissolved Oxygen Meters LCD display and English operation interface JPSJ-605 Price Quantity
JPSJ-605 497.50



1.It is equipped with DO-958-S dissolved oxygensensor.


2.It has automatic temperature compensation, full scale, atmospheric pressure, salinity calibration and power failure functions.

3.It has display of dissolved oxygen concentration and temperature, dissolved oxygen saturation and temperature, current value and temperature.

4.Measuring results can be stored, deleted, viewed and printed. Up to 150 sets of measuring data can be stored. Also, it provides two printing modes such as real-time printing and storage printing.

5.It has RS-232 port and can be connected with TP-16 serial printer. If matched with specific data collecting software, it can be connected with PC.



1.Measuring range:

Dissolved oxygen: (0.0020.00)mg/L

Dissolved oxygen saturation(0.0200.0)%

Temperature: (-5.0105.0)°C

2.Accuracy:

Dissolved oxygen concentration: ±0.30mg/L

Dissolved oxygen saturation: ±10.0%FS

Temperature: ±0.5℃±1digit

3.Response time:<= 45s(90%respond at 20°C)

4.Aftercurrent<=0.1mg/L

5.Temperature compensation range: Automatic(0.040.0)°C

6.Salinity calibration range: (0.040.0)g/L

7.Atmospheric pressure calibration range: 77.0110.0k Pa

8.Stability:(±0.20mg/L/1h

9.Power: universal power adapter(9VDC500mAinside positive, outside negative)

10.Dimension(mm)290×200×70

11.Net Weight: 1kg

12.Case outside serial No: WXS-A001-1

    Package Size: 340X270X280mm

    Gross Weight: 2.5kg
