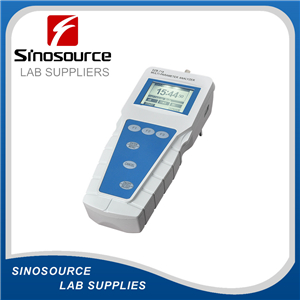

Portable Multi-parameter Meter It can simultaneously measure pX/pH, mV, conductivity, TDS, salinity, resistivity, dissolved oxygen, saturation and temperature Model Number: DZB-712

Specifications

Several parameters can be shown on the same screen. It can simultaneously measure pX/pH, mV, conductivity, TDS, salinity, resistivity, dissolved oxygen, saturation and temperature.



1、It provides many common ion modes such as H+Ag+Na+K+NH4+Cl-F-NO3-BF4-CN-,Cu2+Pb2+Ca2+

2、It follows GLP practice and can store and print 2200 sets of measuring data.

3、It provides zero oxygen and full scale calibration.

4、It provides three measuring modes: continuous measuring, timing measuring and balance measuring mode.

5、It has USB ports. If matched with communication software, it can be connected with PC.

6、It is small size and low-energy designed. The protection level is IP65 for portable work and field measurement.




     1Measuring range:

pH/pX(-2.0020.00)pH/pX

O R P(-1999.91999.9)mV

Conductivity0.000μS/cm199.9S/cm

Resistivity: 0.00Ω.cm20.00MΩ.cm

T D S0.000 mg/L100g/L

Salinity: (0.008.00)%

Dissolved oxygen: (0.0019.99)mg/L

Dissolved oxygen saturation: (0.0199.9)%

Ion concentration:(019990),unit:ug/Lmg/Lg/Lmol/Lmmol/L

Temp:(-5.0135.0)

2Resolution:

pH/pX0.01pH

O R P0.1 mV

Conductivity: 0.001μS/cm

Resistivity: 0.01 Ω.cm

T D S0.001 mg/L

Salinity: 0.1 %

Dissolved oxygen0.01mg/L

Saturation

Temp0.1

3Accuracy:

pH/pX:±0.01pX±1 digit

pH/pX:±0.01pX±1 digit

ORP:±0.1FS

Conductivity:±1.0FS

Resistivity:±1.0FS

T D S:±1.0FS

Salinity:±0.2%

Ion concentration:±0.5%±1 digit

Dissolved oxygen:±0.30mg/L

Dissolved oxygen saturation:±10.0%

Temp:±0.3℃±1 digit

4Input impedance>3×1012Ω

5Dissolved oxygen response time<=45s(90% respond at 20°C )

6Automatic temperature range:

pH:(0.0100.0)℃

Conductivity:0.0100.0)℃

Dissolved oxygen:(0.040.0)℃

7Power: 4 alkaline batteries of model 5

8Dimensionmm):210×100×45

9Weight0.5kg
