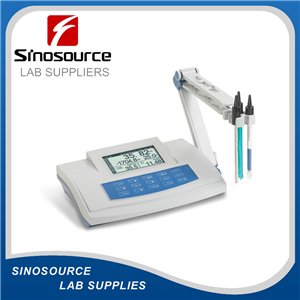

Multi-parameter Water Quality Meter Model Number: DZS-706

Specifications



1、It can measure pX/pH, ORP, conductivity, TDS, salinity, Resistivity, dissolved oxygen, saturation and temperature.

2、It adopts LCD display and Chinese operation interface.

3、It has manual/automatic temperature compensation.

4、It provides zero oxygen and full scale calibration.

5、When the meter measures conductivity, it can switch frequency automatically to guarantee measuring accuracy.

6、It has power failure protection functions.





1Measuring range:

pH/pX(-2.0020.00)pH/pX

O R P(-1999.91999.9)mV

Conductivity0.000μS/cm199.9S/cm

Resistivity0.00Ω.cm20.00MΩ.cm

T D S0.000 mg/L100g/L

Salinity(0.008.00)%

Dissolved oxygen: (0.0019.99)mg/L

Dissolved oxygen saturation(0.0199.9)%

Ion concentration:(019990),unit:ug/Lmg/Lg/Lmol/Lmmol/L

Temp:(-5.0105.0)

2Resolution:

pH/pX0.01pH

O R P0.1 mV

Conductivity: 0.001μS/cm

Resistivity: 0.01 Ω.cm

T D S0.001 mg/L

Salinity0.01 %

Dissolved oxygen: 0.01mg/L

Saturation 0.10%

Temp: 0.1

3Accuracy:

pH/pX:±0.01pX±1个字

pH/pX:±0.01pX±1 digit

ORP0.1%FS

Conductivity: ±1.0FS

Resistivity: ±1.0FS

T D S:±1.0FS

Salinity:±2.0%

Dissolved oxygen: ±0.30mg/L

Dissolved oxygen saturation: ±10.0%

Temp:±0.3℃±1 digit

4Input impedance>3×1012Ω

5Dissolved oxygen response time<=45s(90% respond at 20°C )

6Automatic temperature compensation range:

pH:(0.0100.0)℃

 Conductivity:0.0100.0)℃

Dissolved oxygen:0.040.0)℃

7Power: DC power supply(9V DC800mAinside-positive and outside-negative)

8Dimensionmm):280×215×93

9Weight1kg





Model

Specifications

DZS-706

DZS-706-A

DZS-706-B

DZS-706-C

Measuring parameters

Conductivity, dissolvedoxygen,pH/pXtemperature

Conductivity,pH/pXtemperature

pH/pX

dissolved oxygen, temperature

Conductivity,

Dissolved oxygen, temperature
