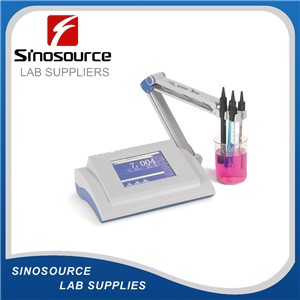

Multi-parameter Water Quality Meter Model Number: DZS-708

Specifications



1、It has 5.7 inch large touch screen and English operation system for easy use.

2、It can measure pH, pX, ORP, ion concentration, conductivity, resistivity, TDS, salinity, dissolved oxygen, saturation and temperature at the same time.

3、It provide many ion modes such as H+Ag+Na+K+NH4+Cl-F-NO3-BF4-CN- Cu2+Pb2+Ca2+ .The users can define ion modes by themselves if choosing corresponding ion sensors.

4、It follows GLP practice and can store 2200 sets of measuring data.

5、Measuring data can be viewed, printed and deleted. The user can view current measuring data and the last calibration data.

6、It provides zero oxygen and full scale calibration,.

7、It has RS-232 and USB ports. If matched with specific data collecting software, it can be connected with PC.

8、It provides three measuring modes: continuous measuring, timing measuring and balance measuring mode.









     1Measuring range:

pH/pX(-2.00019.999) pH/pX

ORP(-1999.991999.99)mV

Conductivity: 0.000μS/cm199.9S/cm

Resistivity: 0.00Ω.cm20.00MΩ.cm

T D S0.000 mg/L19.99g/L

Salinity: (0.08.00)%

Dissolved oxygen concentration: (0.0019.99)mg/L

Dissolved oxygen saturation: (0.0199.9)%

Ion: 019990),unit: ug/Lmg/Lg/Lmol/Lmmol/L

Temperature(-5.0135.0)

2Resolution

pH/pX0.010.001pH

O R P0.1/0.01 mV

Conductivity: 0.001μS/cm

Resistivity: 0.01 Ω.cm

T D S0.001 mg/L

Salinity: 0.1 %

Dissolved oxygen 0.01mg/L

Saturation0.1%

Temperaute0.1

2Accuracy:

pH/pX:±0.002pX±1个字

pH/pX:±0.002pX±1 digit

ORP:±0.03FS

Conductivity: ±0.5FS

Resistivity:±0.5FS

T D S:± 0.5FS

Salinity: ±0.1%

Ion concentration:±0.5%±1 digit

Dissolved oxygen:±0.50mg/L

Dissolved oxygen saturation:±10.0%

Temperature:±0.5℃±1 digit

4Input impedance>3×1012Ω

5Dissolved oxygen response time<=45s90%respond at 20°C

6Automatic temperature range:

pH:(0.0100.0)℃

Conductivity: 0.0100.0)℃

Dissolved oxygen :(0.040.0)℃

7Power: DC(9V DC800mAinside-positve and outside-negative)

8Dimensionmm):250×195×100

9Weight: 2kg

10Case outside serial NoWXS-A009-1





model

specifications

DZS-708

DZS-708-A

DZS-708-B

DZS-708-C

parameter

Conductivity,

dissolved oxygen

pH/pX

temperature

Conductivity, pH/pXtemperature

pH/pX

dissolved oxygen,

temperature

Conductivity,

dissolved oxygen, temperature
