Product Instruction：

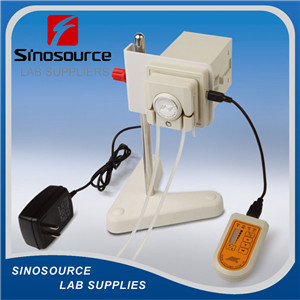

BQ50-1J precise peristaltic pump has small flow rate and compact size, which can be mounted on your equipment rack or panel. The pump provides flow rates from 0.006mL/min to 20mL/min. And the pump could be controlled through hand-held remote controller, external control interface or RS485 interface. White and black casing are available.
Main Functions and Features
- Prime function for fast filling and emptying
- Memory function :Storing the running parameter automatically
- Ideal for OEM: Compact size and light weight
- Installation modes: embedded or rack-mounted
- Control modes: Hand-held remote controller, analog external control, communication
- Tubing loading: Flexible, reliable
|
Standard |
Optional |
|
Configuration |
Accessories |
|
1.Pump Head |
1.Small V-base |
|
2.Drive |
2.Polished Stainless |
|
3.Hand-held |
Steel Frame Tube |
|
Remote Controller |
3.Fixed Plate |
|
4.Adapter |
Technical Specifications
- Speed: 1 to 50 rpm, reversible
- Speed precision: 1 rpm (External Control 0.1 rpm)
- Speed control: Hand-held remote controller
- Display: Hand-held remote controller displays speed range and running status
- External interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
- Communication Interface: RS485 communication control
- Power supply: DC 12 V/1A or Adapter
- Power consumption: < 10 W
- Operating condition: Temperature 0 - 40 °C
- Relative humidity < 80%
- Drive dimensions (L × W × H): 135 × 72 × 72 (mm)
- Controller dimensions (L × W × H): 105 × 50 × 16 (mm)
- Pump weight: 0.5 kg
- IP rating: IP 31
Other parameters
|
