* With aluminium alloy housing, the pump has good corrosive resistance and could be used in corrosive environment.
* With the powerful electro magnetic compatibility, the pump will not behave unacceptably in the EMI environment and will not interfere with other electronic equipment.
* With high IP rating, the pump could be used in wet and dusty environment.
* Using high quality electronic components, optimizing software design and circuit design, the pump provides long-term reliable and stable operation.
* LCD displays parameters and running state, which provides enough information for correct operation
Main Functions and Features:

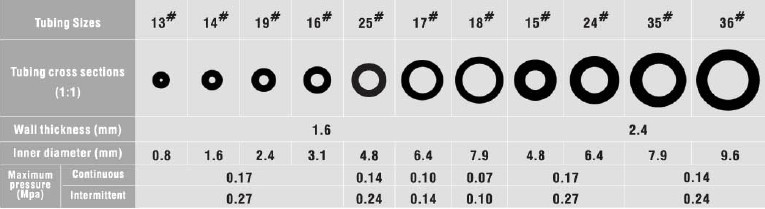

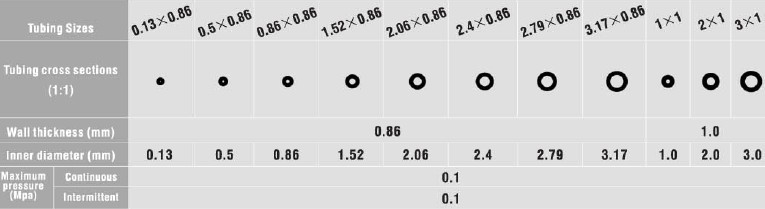

Suitable Tubing
:

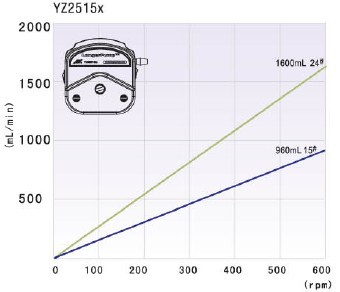

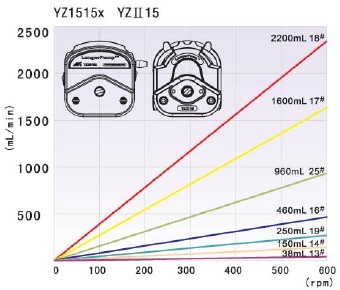

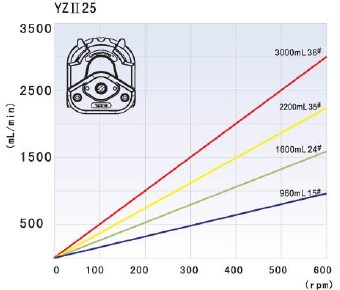

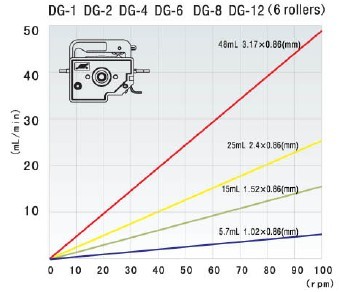

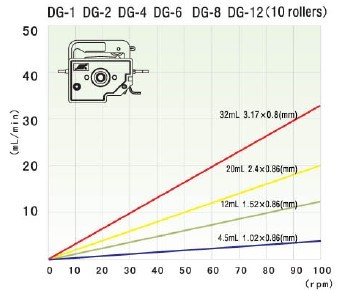

Flow Rate Curves:
Technical Specifications
* Speed: 0rpm-100rpm,CW/CCW
* Speed resolution: 0.1rpm
* Display: LCD
* Control mode: Keypad, external signal control and communication control are available
* External control: Start/stop control, direction control: voltage level signal or switch signal are optional.
* Speed control: 0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, max speed can be changed within 100rpm.
* Communication control: RS485 interface, Longer protocol or Modbus protocol, the communication parameters (baud rate, parity, stop bit) can be set through keypad.
* Parameter memory: Running parameters and system parameters will be saved automatically.
* Running state when power on: The running state when power on can be set as stop or as previous state.
* Prime: Fast filling or emptying at full speed
* EMC: Comply with EMC Directive 2014/30/EU
* Keypad lock function: Keypad can be locked to prevent the misoperation. The locking delay time can be set.
* Dimension(L X W X H): 235mm*142mm*152mm
* Power supply: AC90V-260V/20W,50-60Hz
* Operating temperature: 0℃-40℃
* Relative humidity: 10%-90%
* IP rating: IP65
* Weight: 3.64kg
Other parameters
Model |
Product Code |
Pump Head |
Tubing |
Max. Flow Rate(ml/min) |
Weight (kg) |
G100-1J |
05.02.20A |
YZ1515X,YZⅡ15 |
13#14#19#16#25#17#18# |
380 |
4.04 |
YZ2515X |
15# 24# |
270 |
|||
YZⅡ25 |
15# 24#35#36# |
500 |
|||
FG15-13 |
13#14#19#16#25#17#18# |
430 |
3.92 |
||
FG25-13 |
15# 24# |
320 |
|||
DMD15-13-B |
2*13# 2*14# 2*19# 2*16# 2*25# |
375 |
4.07 |
||
BZ15-13-A |
14# |
22 |
3.95 |
||
BZ15-13-B |
16# |
80 |
|||
BZ15-13-C |
25# |
150 |
|||
BZ15-13-D |
17# |
270 |
|||
BZ25-13-B |
24# |
250 |
|||
DG15-24 |
16# 25# 17# |
300 (Single Channel) |
4.46 |
||
DG15-28 |
13# 14# ID≤3.17mm |
75 (Single Channel) |
4.31 |
||
DG-(1, 2, 4) 6 Rollers |
ID≤3.17mm |
48 (Single Channel) |
3.84-3.91 |
||
DG-(1, 2, 4) 10 Rollers |
32 (Single Channel) |
