OUTFIT |
MODEL |
|
|

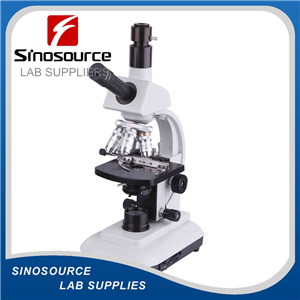

XS-810V |
||
|
Achromatic Objectives |
4X、10X、40X ( S ) |
○ |
|
100X( S, Oil ) |
○ |
|
|
Eyepiece |
WF10X、(WF16X for choice) |
○ |
|
Eyepiece head |
Compensation Free Binocular Head |
○ |
|
Monocular head |
||
|
Nosepiece |
Triple |
|
|
Quadruple |
○ |
|
|
Stage |
Stage+Moving Scale |
○ |
|
Focusing |
Coarse adjustment Focusing 15mm |
○ |
|
Fine adjustment Focusing 1.6mm |
○ |
|
|
Illumination, condenser |
Condenser Na=0.65 |
|
|
Condenser Na=1.20 |
○ |
|
|
6V/20W Halogen Lamp, Adjustable Brightness |
○ |
|
|
Power |
AC Input 220V or 110V, DC Output 6V |
○ |
