OUTFIT |
MODEL |
|

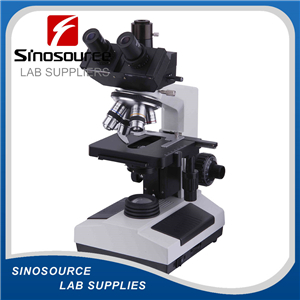

N107III-CCD |
|
|
Achromatic Objectives |
4X、10X、40X（S）、100X（S、Oil） |
|
Eyepiece |
Wide Field Eyepiece ：WF10X、（WF16X for choice） |
|
Eyepiece head |
Trinocular Head for Video Camera(C Mount) |
|
Stage |
Double Layer Mechanical Stage Size 140X140mm,Moving Range 75X45mm |
|
Focusing |
Coaxial Coarse and Fine Adjustment,Focusing Range 30mm,Focusing Interval 0.002mm |
|
Condenser |
Abbe NA=1.25 with lris Diaphragm&Filter |
|
IIIumination |
Halogen Lamp 220V/6V20W or 110V/6V20w |
|
Option |
Quintuple LED light |
