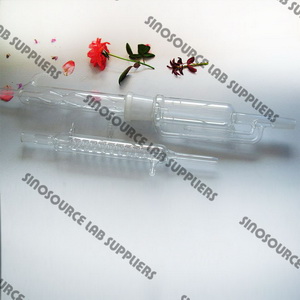

Allihn condenser,150/14.14mm-600/29.29mm Model Number: YCHO-5022

Specifications

Allihn condenser with bulbed inner tube standard ground mouth


Length of jacket Ground mouth Cooling area Total length
(mm) (dm2) (mm)
150 14/23 0.6 235
200 14/23 1.1 295
200 19/26 1.1 330
200 24/29 1.1 350
200 29/32 1.1 360
300 14/23 1.6 405
300 19/26 1.6 430
300 24/29 1.6 450
300 29/32 1.6 460
400 19/26 2.2 530
400 24/29 2.2 550
400 29/32 2.2 560
500 19/26 3 630
500 24/29 3 650
500 29/32 3 660
600 19/26 3.7 730
600 24/29 3.7 750
600 29/32 3.7 760
