2) Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
3) Direct calibration on HL,HRC,HB.
4) Test at any angle, even upside down
5) Large LCD screen with back-light, showing all functions and parameters
6) Upper and lower limit and sound alarm
7) Conversion to tensile strength (U.T.S)
Model | 110 | 120 | 130 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB | ||
Hardness parameter | HL, HRC,HRB, HS,HB,HV | ||
Accuracy | Within±0.5%(HLD=800) | ||
Display | LCD with back-light | ||
Memory | 1250 groups | ||
PC Connection | No | Available | |
Printer | No | ||
Battery | 2 AAA | ||
Operating Temperature | -20℃~+60℃ | ||
Dimensions | 129×68×25mm | 130×70×25mm | |
Shell | Plastic | Metal | |
Impact Device Type | Fixed D | D,DC,DL,D+15,G,C,E | |
Weight | 230g | 240g | 300g |

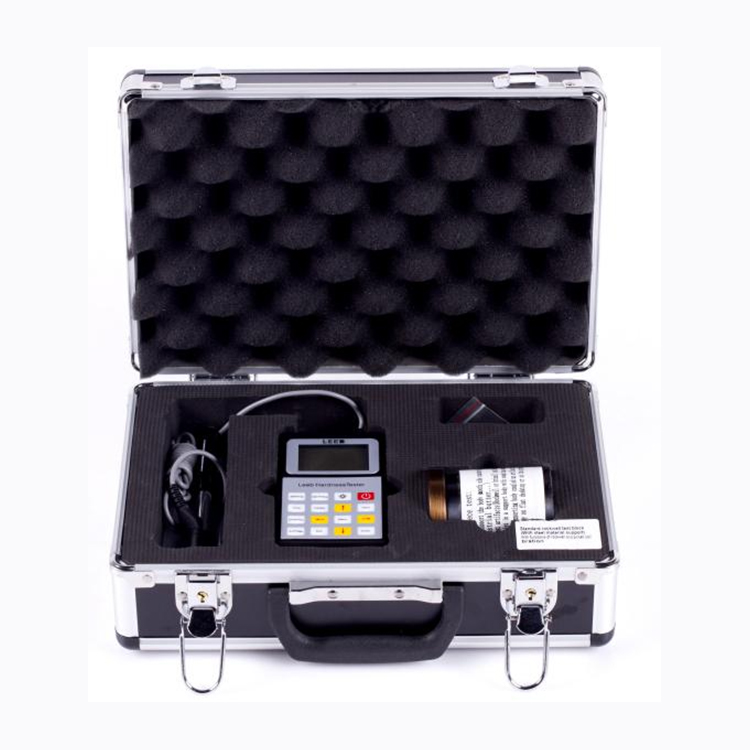

Standard Delivery | Main unit,Impact Device type D,Operation manual, Power adapter,Small supporting ring,Cleaning brush, Calibration block,Certificate. | ||
Optional Accessories | Impact DC,D+15,DL,G,C,E(leeb120),Shaped support ring,Software |
