1) Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
2) Direct calibration on HL,HRC,HB.
3) Large LCD screen with back-light, showing all functions and parameters
4) Upper and lower limit and sound alarm
5) Conversion to tensile strength (U.T.S)
2) Direct calibration on HL,HRC,HB.
3) Large LCD screen with back-light, showing all functions and parameters
4) Upper and lower limit and sound alarm
5) Conversion to tensile strength (U.T.S)
| Model | Leeb180D | Leeb180G | Leeb180DL |
| Calibration | Direct calibration on HL, HRC, HB. | ||
| Main application | Normal Test | For casting and forging of large,thick heavy and surface is rough | For slender, narrow or long holes |
| Measuring Range | (150-960)HLD,(17.1~68.5)HRC,(77-651)HB,(83~976)HV,(26.4~99.5)HS, (59.6~99.6)HRB | ||
| Accuracy | ±6HLD(HLD=760) | ||
| Indication repeatability | 6HLD(HLD=760) | ||
| Operation Direction | 360° | ||
| Hardness parameter | HL,HRA,HRC,HRB,HB, HV,HS,HSD | ||
| Fixed impact device | D | G | DL |
| PC software | Yes | ||
| Storage | 350 groups | ||
| Statistical | Yes | ||
| Battery | Rechargeable Lithium battery 3.7V/300mA | ||
| Dimension | 150*40*45mm | 255*45*45mm | 210*40*45mm |
| Weight | 110g | 260g | 130g |

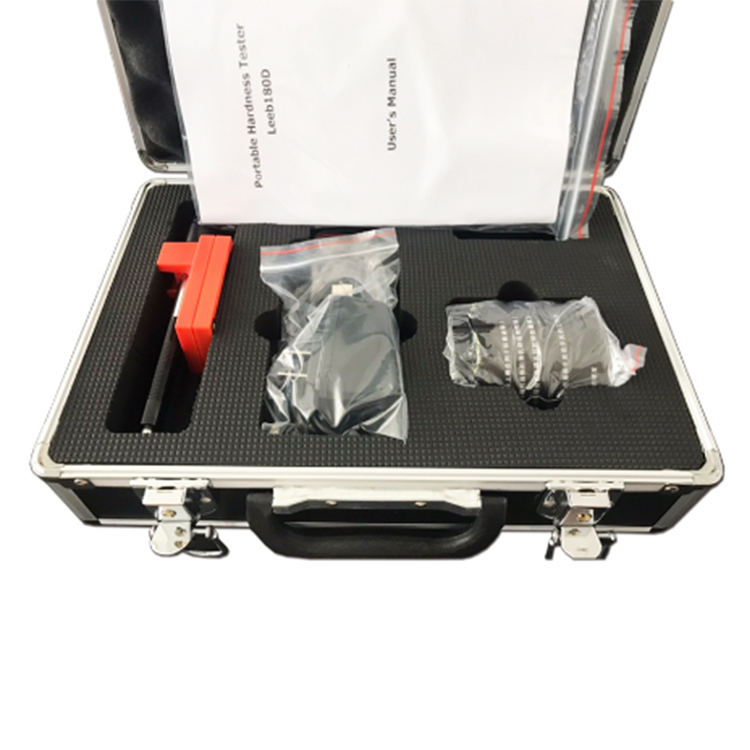

| Standard Delivery | Main body,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Calibration block,Certificate. | ||
| Optional | Shaped support ring,Calibration block,PC software | ||
