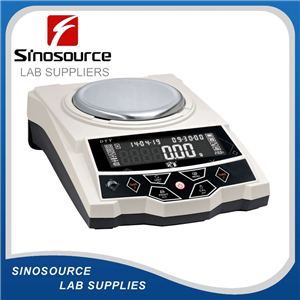

Description ( Main Function, Specification) |
|
|
|
◆ Four Level Anti-Shock Ajustable Function |
◆ Super Size LCD display with backlight |
|
|
◆ Dual Weighing Range/Weighing Precision |
◆ Default and auto lock present working mode |
|
|
◆ Anti-Radiate, Anti-Static Metal Housing |
◆ All Aluminium Casting Housing |
|
|
◆ Weighing Response time Adjustable |
◆ Built in RS232/USB for printer or other equipment |
|
|
◆ 17 Units Available : g,ct,lb,oz,ozt,GN,dwt... |
◆ Time & Date Setting |
|
|
◆ Counting And Weighing |
◆ % Percentage Weighing |
|
|
◆ AC-DC Available |
◆ Load cell Base |
|
|
★ Optional with Rechargeable Battery |
★ Optional with Display Temperautre |
|
|
★ Optional with External Operatable Indicator |
★ Optional with Density Weighing |
|
|
★ Optional with Under Hook |
★ Optional with Dynamic Weighing |
|
|
Item No. |
Max Cap(g) |
Readability (g) |
Repeatability (g) |
Linearity (g) |
Pan Size (mm) |
Housing Size (mm) |
|
DTY-B220 |
220/620 |
0.01/0.05 |
±0.01/±0.05 |
±0.02/±0.05 |
Φ133 |
295×208×305 |
|
DTY-B320 |
320/620 |
|||||
|
DTY-B520 |
420/1200 |
|||||
|
DTY-B620 |
520/2200 |
|||||
|
DTY-B1200 |
620/2200 |
|||||
|
DTY-B2200 |
220/3200 |
±0.02/±0.05 |
±0.03/±0.1 |
156×156 |
||
|
DTY-B3200 |
320/4200 |
295×205×88 |
||||
|
DTY-B4000 |
4000 |
0.01 |
±0.02 |
±0.03 |
168×168 |
|
Item No. |
Max Cap(g) |
Readability (g) |
Repeatability (g) |
Linearity (g) |
Pan Size (mm) |
Housing Size (mm) |
|
DTY-C1200 |
2200/2200 |
0.1/0.2 |
±0.1/±0.2 |
±0.2/±0.2 |
Φ133 |
295×205×88 |
|
DTY-C2200 |
3200/4200 |
168×168 |
||||
|
DTY-C3200 |
3200/5200 |
|||||
|
DTY-C5200 |
5200/10000 |
|||||
|
DTY-C6200 |
6200/10000 |
