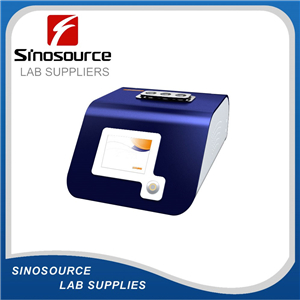

MP300 Auto Point Apparatus is integrated with photoelectric detection, digital temperature display and other technologies, boasts automatic display of initial and final melts and other functions. In the temperature system, linearly calibrated platinum resistor is used as the detection device, offering efficient and accurate test process and results. The apparatus can be widely used in the chemical industry and medicine research and is essential for the production of medicines, spices, dyes and measurement of other organic crystal substances,only for light color or transparent sample.
Characteristics:
- Advanced true color VGA touch screen is easy for operation and observation;
- 50-level linear temperature rise design is satisfactory for varied temperature rise options;
- Three independent temperature detection systems ensure the detection of three samples of varied melting points;
- Wider temperature control scope and higher temperature accuracy;
- Optimal cooling rate and sample test speed;
- The variation curve of tested sample can be displayed in a timely manner
- RS232 interface, associated computer software and external computer control are available;
- Detailed test data can be stored;
- Exclusive integral design;
Technical data:
| Melting point range | room tem.+5℃--400℃ |
| "Initial temperature" setting rate | ≤7 min(50℃--400℃) |
| ≤7.5 min(400℃--50℃) | |
| Temperature resolution | 0.1℃ |
| Repeatability | 0.2℃ at heating rate of 0.2℃/min |
| Temperature accuracy | ±0.4℃(<200℃),±0.7℃(<300℃) |
| Temperature gradients | 0.1--5℃/min(default 0.1℃/min, 50 classes) |
| Standard capillary size | I.D. 1.0mm, O.D. 1.4mm |
| Capacity per batch | 3pc./batch (3 different samples) |
| Control&Display model | LCD color touch screen |
| Power supply | 220VAC±10% 50Hz |
| Power | 300W |
| Net weight | 17kg |
| Dimensions | 523mmX332mmX216mm |
