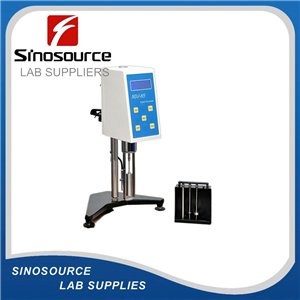

Product Information and Details
The stepping motor is able to drive without gear at an accurate rotational speed
The LCD screen shows a lot of information in blue lighted background
Shows the largest viscosity value of rotor under its current rotating speed
Timing function of measurement
Shows the continuous variation of viscosity value
Alarm alerts when the measurement is out of range
Linear correction for the whole measurement by the computer
AC adaptor 100V- 240V, excellent in interference immunity
Optional Accessories
Constant temperature water bath exclusive for measuring viscosity
Adaptor for measuring minute viscosity
Standard Solution
Mini Printer
RTD temperature sensor
External Circular Glass Beaker
|
Type |
NDJ-5S |
NDJ-8S |
|
Measurement Range (mPa.s) |
1-100K |
1-2000K |
|
R.P.M (per min) |
6, 12, 30, 60 |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
|
Rotor Amount |
#1, #2, #3, #4 are standard configurations (#0 is optional) |
|
|
Measurement Accuracy |
+ - 1.0% (of the full range) |
|
|
Repeatability |
0.5% |
|
