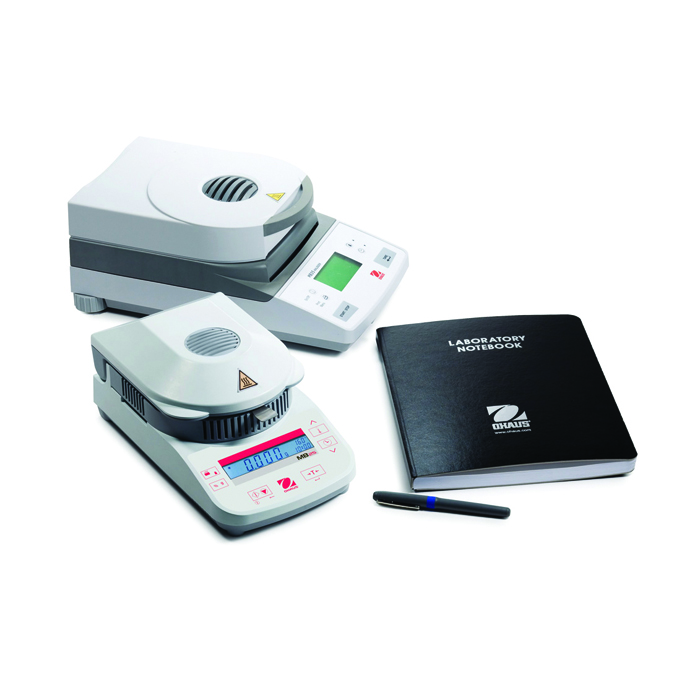

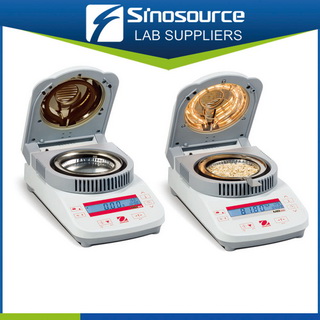

The new OHAUS MB23 and MB25 Moisture Analyzers combine high quality durable construction and easy one button setup, making them ideal for operators of all skill levels.
With a large backlit LCD display, standard RS232 port, readabilities from 0.1% to 0.05% and a choice of halogen or infrared heating, the MB23 and MB25 offer flexibility for any budget.Standard
Features Include:
? Flexible Performance –The OHAUS MB Series provide accurate results from 0.01% to 0.1% readability. And with your choice of halogen or infrared heating, they are ideal for a wide variety of applications, from pharmaceutical and chemical to food, textile, wastewater and other applications.
? Simple to Operate –Set up and operation is extremely easy. Just press and hold the temperature or time buttons to set drying parameters, add your sample and begin the test process. This makes the MB Series ideal for routine tasks performed by operators of all skill levels.
? Compact, Easy-to-Clean Design –The compact footprint of the OHAUS MB Series is designed to take up less space on any counter top. Their easy-to-clean heating chambers are ideal for frequent use and inexpensive maintenance.
? Advanced Applications - For more complex measurement, the MB45 also features statistical analysis, 50 procedure test library, GLP/GMP printing and a dot and a dot matrix backlit display.
|
Model |
MB23 |
|
Capacity (metric): |
110 g |
|
Readability (metric): |
0.01 g |
|
Repeatability (Std. Dev.) (g): |
0.3% (3g sample) 0.2% (10g sample) |
|
Sample size: |
3g to 20g typical, 0.5g min. |
|
Interface: |
Bidirectional RS-232 |
|
Timer: |
1 - 99 minutes, 30-second increments to 60minutes |
|
Heat source: |
Infrared (no glass) |
|
Temperature variations: |
50℃ to 160℃ in 5℃ increments |
|
Powered By: |
100 to 240 VAC, 50/60 Hz |
|
Tare range: |
To capacity by subtraction |
|
Operating Temperature Range: |
41 to 104 F / 5℃ to 40℃ |
|
Display type: |
Custom backlit LCD |
|
Display: |
% moisture or % solids or weight (g), temperature, time |
|
Pan size (Dia.) (in/mm): |
3.5 inch / 90 mm |
|
Dimensions WxHxD (in/cm): |
6.5 x 5 x 11 inches / 17 x 13 x 28 cm |
|
Net Wt. (lb/kg): |
5 lb / 2.1 kg |
|
Shipping Wt. (lb/kg): |
8.5 lb / 4.15 kg |
Application Modes
Typical areas: In a contract laboratory,In a laboratory,In a waste water treatment plant,In food processing and preparation environments
? Weighing
TYPE
DESCRIPTION
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard
heating profile, 50° to 160° C heating range (5° C increments)
Display
Backlit liquid crystal display (LCD)
Operation
Powerrd (included)
