Overview

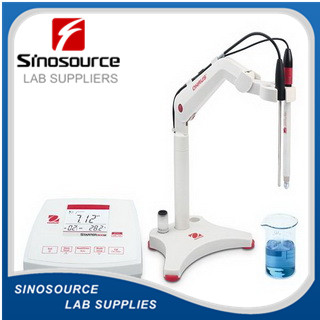

Save time, space and money with the Starter 3100M Bench Meter, which combines all your pH, ORP, conductivity, TDS, salinity, resistivity and temperature measurements - in one smart device. Ideal for a wide range of lab applications, the ST3100M is incredibly easy to use. Equipped with software to ensure the reliability of your readings, and RS232 connectivity to store and transfer data conveniently, the ST3100M is a great addition to your lab.
Applications
pH, Oxidation-Reduction Potential (ORP), Conductivity, Total Dissolved Solids (TDS), Salinity, Resistivity and Temperature Measurements
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 (included)
Construction
ABS housing, in-use cover, mechanical keys
Design Features
Three point calibration (pH), electrode condition icon, parameter toggle button, compact design
Specifications
Measurement Range |
00.0 μS/cm – 199.9 mS/cm; -5 °C – 110 °C; -2.00 – 20.00 pH; -1999 – 1999 mV; 0-20 MΩ?cm |
Accuracy |
± 0.5 % F.S.; ±0.01 pH; ±0.3 °C; ±1 mV |
Measurement Resolution |
0.01 μS/cm; 0.1 °C; 0.01 pH; 1 mV; 0.01 Ω?cm |
Display |
LCD, backlight |
Electrode |
ST230 (Included); STTEMP30 (Included); STCON3 (Included) |
Accuracy ± (mV) |
1 mV |
Accuracy ± (Temperature) |
0.3 °C |
Battery Life |
Not Applicable |
Conductivity accuracy |
0.5 % |
Conductivity measuring range |
0.0 – 199.9 ?S/cm |
Dimensions (HxLxW) |
3.07 in x 6.89 in x 8.66 in (78 mm x 175 mm x 220 mm) |
In-use cover |
Included |
Measurement Range (Temperature) |
-5 °C – 110 °C |
Measurement Range |
-1,999 mV – 1,999 mV |
Net Weight |
2.09 lb (0.95 kg) |
pH accuracy (±) |
0.01 |
pH measuring range |
-2 – 20 |
pH resolution |
0.01 |
Power |
100 - 240 V |
Resolution Cond. (Variable) |
0.01 – 200 |
Resolution (Voltage) |
1 mV |
Temperature Compensation |
Automatic |
Temperature resolution |
0.1 °C |
Temperature Sensor |
30 KΩ NTC |
Working Environment |
14°F – 104°F, 85%RH, non-condensing (-5°C – 40°C, 85%RH, non-condensing) |
