Overview

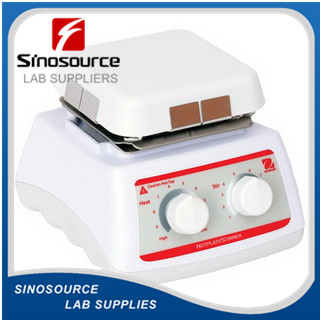

OHAUS Mini Hotplate Stirrers are rugged, compact units that can heat and stir up to 1000 ml of water. These stirrers are ideal for educational and other lab environments that require consistent stirring. Models include Hotplates, Stirrers, Hotplate-Stirrers, Fixed Temperature Hotplates and Auto Stirrers. All models feature a 4x4 inch (10.2x10.2 cm), easy-to-clean ceramic top plate and cool-touch housing.
Applications
Boiling Water, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
Display
N/A
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Valox housing, basic control knobs, 1.5 inch (3.8 cm) stir bar (included with Stirring models), On/Off toggle switch (Fixed Temperature models)
Design Features
N/A
Specifications
|
Function |
Stirring, Auto Start/Stop |
|
Capacity |
1000 mL |
|
Plate Construction |
Ceramic |
|
Plate Size (LxLxWxW) |
5 in x 12.7 cm x 5 in x 12.7 cm |
|
Control |
Analog |
|
Dimensions (HxLxW) |
5 in x 7.9 in x 6 in (12.7 cm x 20.1 cm x 15.2 cm) |
|
Net Weight |
4 lb (1.8 kg) |
|
Power |
230V, 0.25A, 50/60Hz |
|
Power Consumption |
20 W |
|
Safety Certification |
CE; TUV |
|
Speed Range |
100 rpm – 1200 rpm |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
