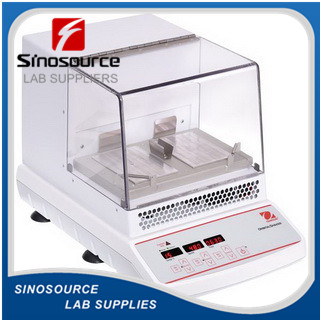

OHAUS Incubating Cooling Orbital Shakers are designed to incubate samples from 10° below ambient to 65°C. Incubating Cooling Mini Shaker is designed to hold two microplates or two optional modular tube blocks in a variety of configurations. All models feature touchpad controls with easy-to-read, independent LED displays for temperature, speed and time. Microprocessor control provides consistent uniform shaking action.
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicator
Specifications
|
Motion |
Orbital, 3 mm |
|
Capacity |
2 Microplates or 2 Modular Blocks |
|
Temperature Range |
Ambient +5°C – 65°C |
|
Uniformity |
± 0.5°C at 37°C |
|
Speed Range |
100 rpm – 1200 rpm |
|
Calibration |
Temperature calibration |
|
Control |
Digital |
|
Dimensions (HxLxW) |
10.5 in x 17.9 in x 11 in (26.7 cm x 45.5 cm x 27.9 cm) |
|
Drive System |
Brushless DC Motor; Triple Eccentric |
|
Net Weight |
29.5 lb (13.4 kg) |
|
Orbit {metric} |
0.1 in (3 mm) |
|
Power |
230V, 1A, 50/60Hz |
|
Power Consumption |
200 W |
|
Safety Certification |
CE; TUV |
|
Speed Accuracy |
±2% |
|
Speed Range |
100 rpm – 1200 rpm |
|
Timer |
1 second – 160 hours |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
