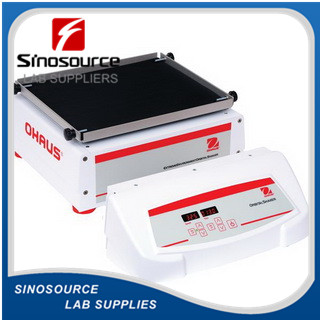

Ideal for applications that require CO2 and humidity for optimal cell growth, our Extreme Environment Shakers are designed for use in extreme environments such as CO2 incubators. A remote controller (that magnetically attaches to the outside of most incubators) allows for external control of settings, and the shaker base is placed inside of the incubator. Microprocessor control ensures consistent shaking while safely ramping to the set speed.
Applications
Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port
Design Features
Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)
Specifications
Motion |
Orbital, 19 mm |
Capacity |
16 kg |
Speed Range |
15 rpm – 500 rpm |
Tray Size (LxLxWxW) |
13 in x 33 cm x 13 in x 33 cm |
Control |
Digital |
Drive System |
Brushless DC Motor; Triple Eccentric |
Calibration |
Speed calibration |
Communication |
RS232 (Included) |
Dimensions (HxLxW) |
5.8 in x 17.3 in x 13.9 in (14.7 cm x 43.9 cm x 35.3 cm) |
Net Weight |
48.1 lb (21.8 kg) |
Orbit {metric} |
0.8 in (19 mm) |
Power |
230V, 0.3A, 50/60Hz |
Power Consumption |
30 W |
Safety Certification |
CE; TUV |
Speed Accuracy |
±1 rpm, Above 100 rpm ±1% of set speed |
Speed Range |
15 rpm – 500 rpm |
Timer |
1 second – 160 hours |
Tray Construction |
Aluminum |
Working Environment |
14°F – 140°F, 100%RH (-10°C – 60°C, 100%RH) |
