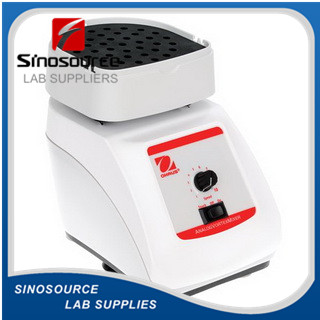

Heavy-Duty Vortex Mixers feature a heavy-duty design and efficient motor to permit continuous duty operation, and the ability to handle accessory components over the entire speed range. Analog variable speed models or microprocessor-controlled digital models offer exact speed control when applications demand repeatable results. A wide range of accessories are available for microtubes, microplates and a variety of tube sizes from 0.5 to 50 ml.
Applications
ELISA Assays, PCR Preparations, Digestions, Cell Disruptions
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cycoloy, Touch/Standby/On rocker switch (both models)
Design Features
Universal holder, foam insert for (38) 1.5 to 2 ml microtubes, universal cover and cup head (included)
Specifications
|
Control |
Analog |
|
Duty Rating |
Continuous |
|
Orbit {metric} |
0.2 in (4.9 mm) |
|
Speed Range |
On Mode, 300 rpm – 2500 rpm; Touch Mode, 300 rpm – 3500 rpm |
|
Capacity |
1.1 kg |
|
Dimensions (HxLxW) |
6.3 in x 9.5 in x 6.6 in (16 cm x 24.1 cm x 16.8 cm) |
|
Net Weight |
14.8 lb (6.7 kg) |
|
Power |
230V, 0.13A, 50/60Hz |
|
Power Consumption |
30 W |
|
Safety Certification |
CE; TUV |
|
Working Environment |
39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing) |
