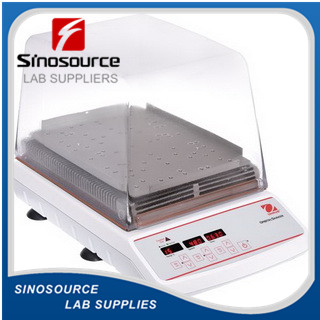

OHAUS Incubating Light Duty Shakers are designed to incubate samples from 10° below ambient to 65°C depending on the model. The Incubating Mini Shaker has an 8 lb (3.6 kg) capacity while the Incubating Microplate Shaker can hold up to four standard or deep well plates. Incubating-Cooling Mini Shaker is designed to hold two microplates or two optional modular tube blocks. All models feature LED displays with touchpad controls.
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicatorSpecifications
|
Motion |
Orbital, 3 mm |
|
Capacity |
3.6 kg |
|
Temperature Range |
Ambient +5°C – 65°C |
|
Uniformity |
± 0.5°C at 37°C |
|
Speed Range |
100 rpm – 1200 rpm |
|
Tray Size (LxLxWxW) |
11 in x 27.9 cm x 7.75 in x 19.7 cm |
|
Calibration |
Temperature calibration |
|
Control |
Digital |
|
Dimensions (HxLxW) |
10.7 in x 17 in x 11 in (27 cm x 43.2 cm x 27.9 cm) |
|
Drive System |
Brushless DC Motor; Triple Eccentric |
|
Inner Dimensions (HxHxLxLxWxW) |
5.7 in x 14.5 cm x 11.3 in x 28.7 cm x 8.3 in x 21.1 cm |
|
Net Weight |
24.5 lb (11.1 kg) |
|
Orbit {metric} |
0.1 in (3 mm) |
|
Power |
230V, 5A, 50/60Hz |
|
Power Consumption |
450 W |
|
Safety Certification |
CE; TUV |
|
Speed Accuracy |
±2% |
|
Speed Range |
100 rpm – 1200 rpm |
|
Timer |
1 second – 160 hours |
|
Tray Construction |
Aluminum |
|
Working Environment |
41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
