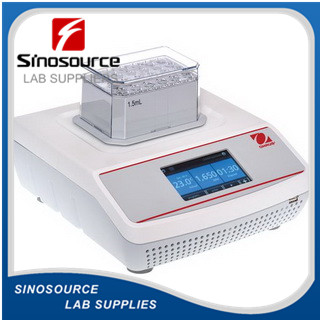

Thermal Shakers are designed for applications that require consistent and precise high-speed shaking with temp. control to 100°C. With heating & shaking capabilities, our shakers use interchangeable blocks to accommodate tubes & microplates. Intuitive LCD touchscreen allows the user to save & track progress of 5 user-defined programs, each with 5 individual steps. Enhanced electronics provide dependable temp. settings across the operating range.
Applications
DNA, RNA, Cell Cultures, Hybridizations, Protein Studies
Display
4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Operation
Detachable 3-wire cord and plug (included), unit requires a block (1.5 ml block included) - compatible with Eppendorf Thermomixer? R blocks
Communication
USB port provides greater flexibility in data collection and transfer
Construction
Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Design Features
Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function
Specifications
|
Motion |
Orbital, 3 mm |
|
Capacity |
1 Thermal block |
|
Temperature Range |
Ambient +4°C – 100°C |
|
Speed Range |
300 rpm – 3000 rpm |
|
Calibration |
Temperature calibration |
|
Communication |
USB |
|
Control |
Touch |
|
Dimensions (HxLxW) |
5.2 in x 10.25 in x 9.75 in (13.2 cm x 26 cm x 24.8 cm) |
|
Drive System |
Brushless DC Motor |
|
Heating Rate (/min) |
5°C/min |
|
Net Weight |
10.8 lb (4.9 kg) |
|
Orbit {metric} |
0.1 in (3 mm) |
|
Power |
230V, 0.9A, 50/60Hz |
|
Power Consumption |
210 W |
|
Safety Certification |
CE; TUV |
|
Speed Accuracy |
±2% |
|
Speed Range |
300 rpm – 3000 rpm |
|
Temperature accuracy (±) |
+/- 0.5°C between 20°C and 45°C; +/-2°C below 20°C and 45°C |
|
Timer |
1 second – 99 hours, 59 minutes |
|
Working Environment |
41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing) |
