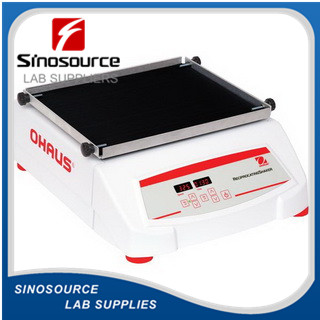

OHAUS Reciprocating Shakers are designed for a range of applications including cell cultures and extraction procedures that require accurate, repeatable results. Our shakers are microprocessor-controlled to provide consistent, uniform shaking action. The back-and-forth reciprocating motion has a 19 mm stroke length. Permanently lubricated ball bearings & maintenance-free, brushless DC motor provide reliable service and continuous duty operation.
Applications
Chemical Extractions, Blood Sample Mixing, Gel Staining, Cell Cultures, Solubility Studies
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)
Specifications
|
Motion |
Reciprocating, 19 mm |
|
Capacity |
6.8 kg |
|
Speed Range |
20 rpm – 300 rpm |
|
Tray Size (LxLxWxW) |
11 in x 27.9 cm x 13 in x 33 cm |
|
Control |
Digital |
|
Drive System |
Brushless DC Motor; Single Eccentric |
|
Calibration |
Speed calibration |
|
Communication |
RS232 (Included) |
|
Dimensions (HxLxW) |
5.9 in x 16.3 in x 14 in (14.9 cm x 41.3 cm x 35.5 cm) |
|
Net Weight |
48.1 lb (21.8 kg) |
|
Power |
230V, 2.5A, 50/60Hz |
|
Power Consumption |
40 W |
|
Safety Certification |
CE; TUV |
|
Speed Accuracy |
±1 rpm, Above 100 rpm ±1% of set speed |
|
Speed Range |
20 rpm – 300 rpm |
|
Stroke |
19 |
|
Timer |
1 second – 160 hours |
|
Tray Construction |
Aluminum |
|
Working Environment |
14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
