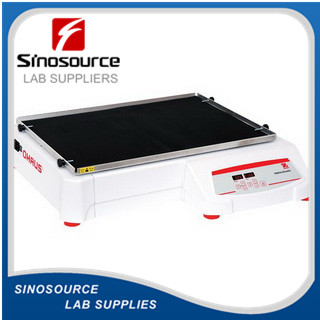

With load capacities from 35 to 150 lb and over 70 accessory options, OHAUS Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted. Built-in tray and non-slip rubber mat included with all models.
Applications
Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)
Specifications
|
Motion |
Orbital, 25 mm |
|
Capacity |
22.7 kg |
|
Speed Range |
20 rpm – 500 rpm |
|
Tray Size (LxLxWxW) |
18 in x 45.7 cm x 24 in x 61 cm |
|
Control |
Digital |
|
Drive System |
Brushless DC Motor; Triple Eccentric |
|
Calibration |
Speed calibration |
|
Communication |
RS232 (Included) |
|
Dimensions (HxLxW) |
5.9 in x 24 in x 26.7 in (14.9 cm x 61 cm x 67.8 cm) |
|
Net Weight |
108 lb (49 kg) |
|
Orbit {metric} |
1 in (25 mm) |
|
Power |
230V, 2.5A, 50/60Hz |
|
Power Consumption |
75 W |
|
Safety Certification |
CE; TUV |
|
Speed Accuracy |
±1 rpm, Above 100 rpm ±1% of set speed |
|
Speed Range |
20 rpm – 500 rpm |
|
Timer |
1 second – 160 hours |
|
Tray Construction |
Aluminum |
|
Working Environment |
14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
