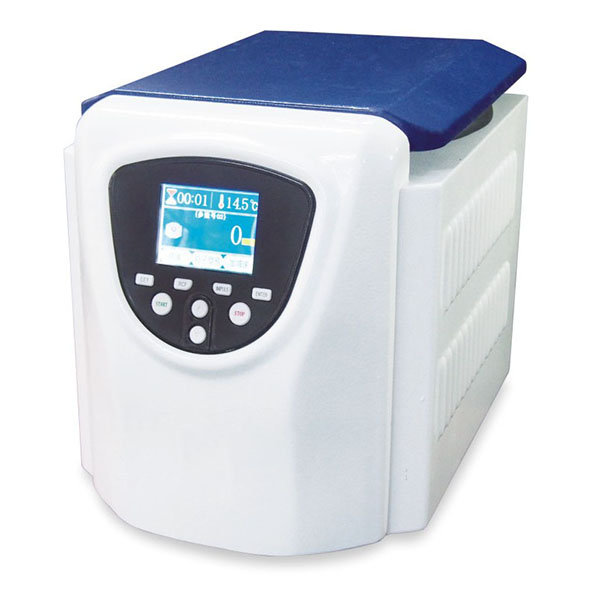

One of the smallest high-speed centrifuges with a centrifugal force up to 18,780 × g and a capacity up to 12 × 10 ml.
Micro-controller and high-torque brushless motor provide stable operation and low noise
Wide temperature control range: room temp.
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
Can store 20 sets of user-defined programs (Can be customized according to demand).
Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, suitable for 1.5mL to 10mL centrifuge tubes.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.
Model |
TG16MW |
Max speed |
16500r/min |
Max RCF |
18780xg |
Max Capacity |
12*10ml |
Time range |
1min-99h59min, with continuous run function |
Speed Adjustment |
(±50 rpm steps)can be customized |
Control and drive system |
Large torque AC variable frequency motor, microcomputer control
|
Noise lever |
≤60dB(A) |
Total power |
350W |
Tower supply |
220V 50Hz |
Weight |
17Kg |
