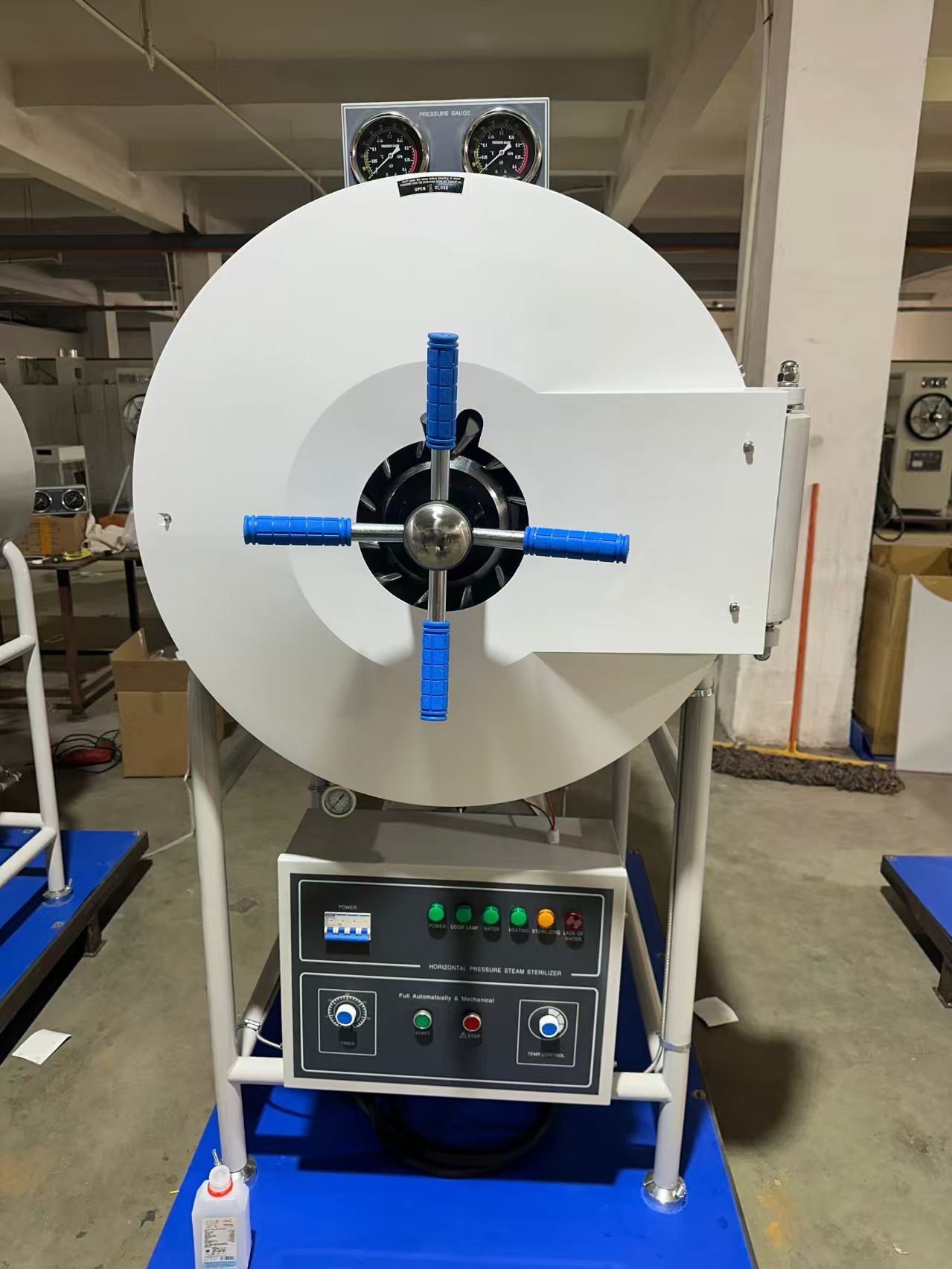

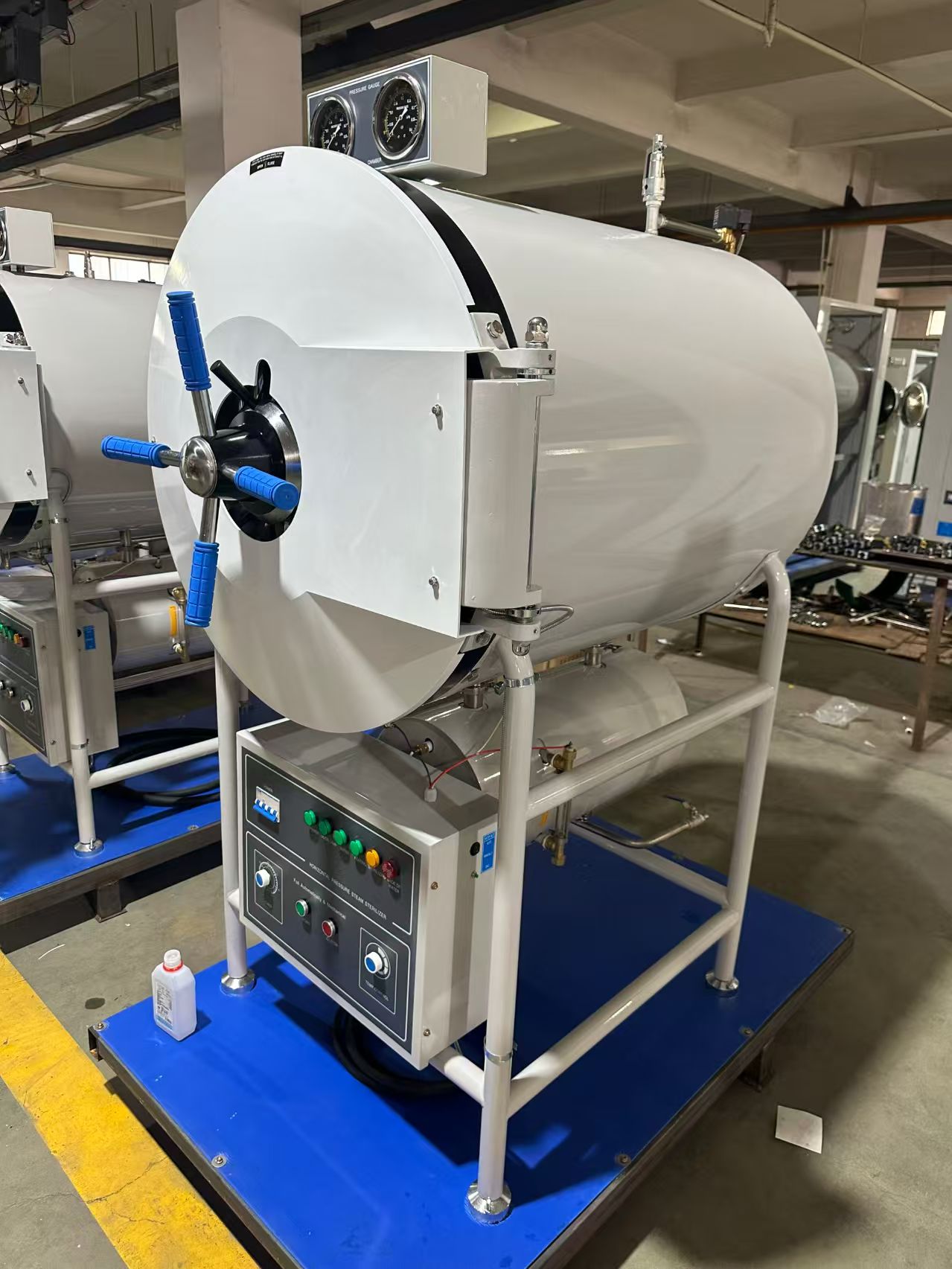

: Horizontal Cylindrical Pressure Steam Sterilizer Program Autoclave Model Number: WS-400YDA
Specifications

● Automatically controlled the sterilizing process, easy to operate.
● With drying function, suitable for medical dressing drying.
● With over-temperature, over-pressure auto-protect.
● The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
● The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
● Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
● The chamber of the sterilizer is made of stainless steel.

WS-400YDA	Price	Quantity
WS-400YDA	4990

The horizontal autoclave adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure reliable sterilization. The control system automatically adjusts the steam inlet and outlet according to chamber temperature during sterilizing. This unit is ideal equipment for clinics, scientific research institutes, and other organizations to sterilize surgical instruments, fabric glass, and culture media, etc.

Sterilizing chamber volume:400L
Φ700×1100mm
working pressure:0.22MPa
working temperature:134℃
Adjustment of temperature:105℃ - 134℃
Time of sterilization:0-60 min
Time of drying:0-60 min
Heat average:≤±1℃
Power:18KW/380V 50Hz
Dimension:1430×880×1830
Transport dimension:1800×1050×2100
G.W/N.W:530/520 KG

MODEL/Technical Data	WS-150YDA	WS-200YDA		WS-280YDA		WS-400YDA		WS-500YDA
Sterilizing chamber volume	150L	200L		280L		400L		500L
	Φ440×1000mm	Φ515×1000mm		Φ600×1000mm		Φ700×1100		Φ700×1300
Working pressure	0.22Mpa
Working temperature	134℃
Temperature adjust range	40-134℃
Time for sterilization	0-60min
Time for drying	0-60min
Heat average	≤±2℃
Power	9kw/380V 50Hz	9kw/380V 50Hz	12kw/380V 50Hz		18kw/380V 50Hz		18kw/380V 50Hz
Dimension（mm）	1400×600×1300	1400×670×1650	1400×770×1780		1430×880×1830		1800×900×1820
Exterior package dimension（mm）	1560×750×1850	1560×820×1850	1680×920×1950		1600×1050×2050		1850×1050×2050
G.W/N.W	320/240kg	350/260kg	465/365Kg		530/420Kg		580/470Kg

● Automatically controlled the sterilizing process, easy to operate.
● With drying function, suitable for medical dressing drying.
● With over-temperature, over-pressure auto-protect.
● The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
● The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
● Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
● The chamber of the sterilizer is made of stainless steel.
